OTHER COMPONENTS
Condenser / Fan / Filter Drier / Charging Valve
Condenser

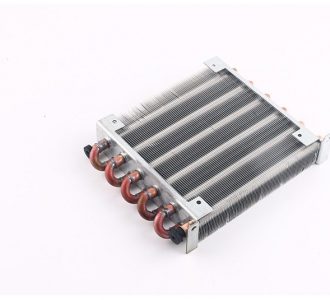

Fin and tube condenser
Material Composition: Copper coil tubes + aluminum fins + galvanized steel frame.
Process: High-efficiency heat exchange structure. Refrigerant flows through the copper tubes, while the aluminum fins significantly increase the heat dissipation / heat absorption area.
Application Scenarios:
1. Household ice makers (core heat dissipation component for flake ice makers)
2. Small refrigerators / freezers (certain mini refrigerators)
3. Laboratory equipment / small water chillers

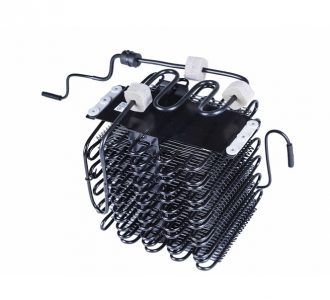

Louvered Fin-and-Tube Condenser
Material Composition: Bondi tubes (black-coated steel tubes) + dense louvered aluminum fins + galvanized steel mounting plates + shock-absorbing foam pads
Application Scenarios:
1. Modern household direct-cooling / air-cooling refrigerators, small freezers
2. Typically installed internally in the side/back panel of the appliance, replacing traditional exposed wire-on-tube condensers for a cleaner appearance and higher heat dissipation efficiency

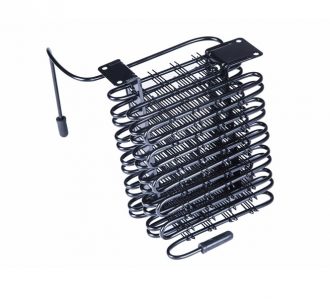

Spiral Wire-on-Tube Condenser
Application Scenarios:
1. Household refrigerators, small freezers, chest freezers
2. Typically installed internally at the bottom of the appliance, replacing traditional exposed flat wire-on-tube condensers for space saving and a cleaner appearance
Key Features: Natural convection cooling, fanless, quiet, low cost, high reliability, a classic structure for household refrigeration equipment.

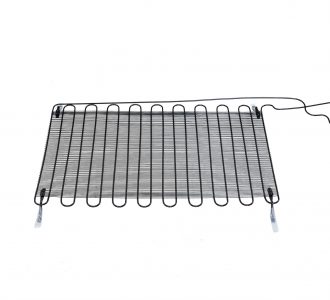

Flat Wire-on-Tube Condenser
Material Composition: Bondi tubes (black-coated steel tubes) + spot-welded steel wire mesh
Application Scenarios: Household refrigerators, commercial freezers, chest freezers, refrigerator replacement parts
Key Features: Natural convection cooling, fanless, quiet, low cost, high reliability, classic structure for household refrigeration equipment
